The existing product in the upper hopper is transferred to a weighing chamber via a pneumatically controlled gate in the inlet box. Meanwhile, the weighing chamber gate remains closed. The required weight is measured by the weighing compartments, and this data is sent to the PLC system. The PLC system then opens the weighing chamber gate, allowing the product to be discharged into the lower hopper. When the final product batch fills the lower hopper, the capacitive level control switch sends this information to the PLC system, and the filling process repeats.

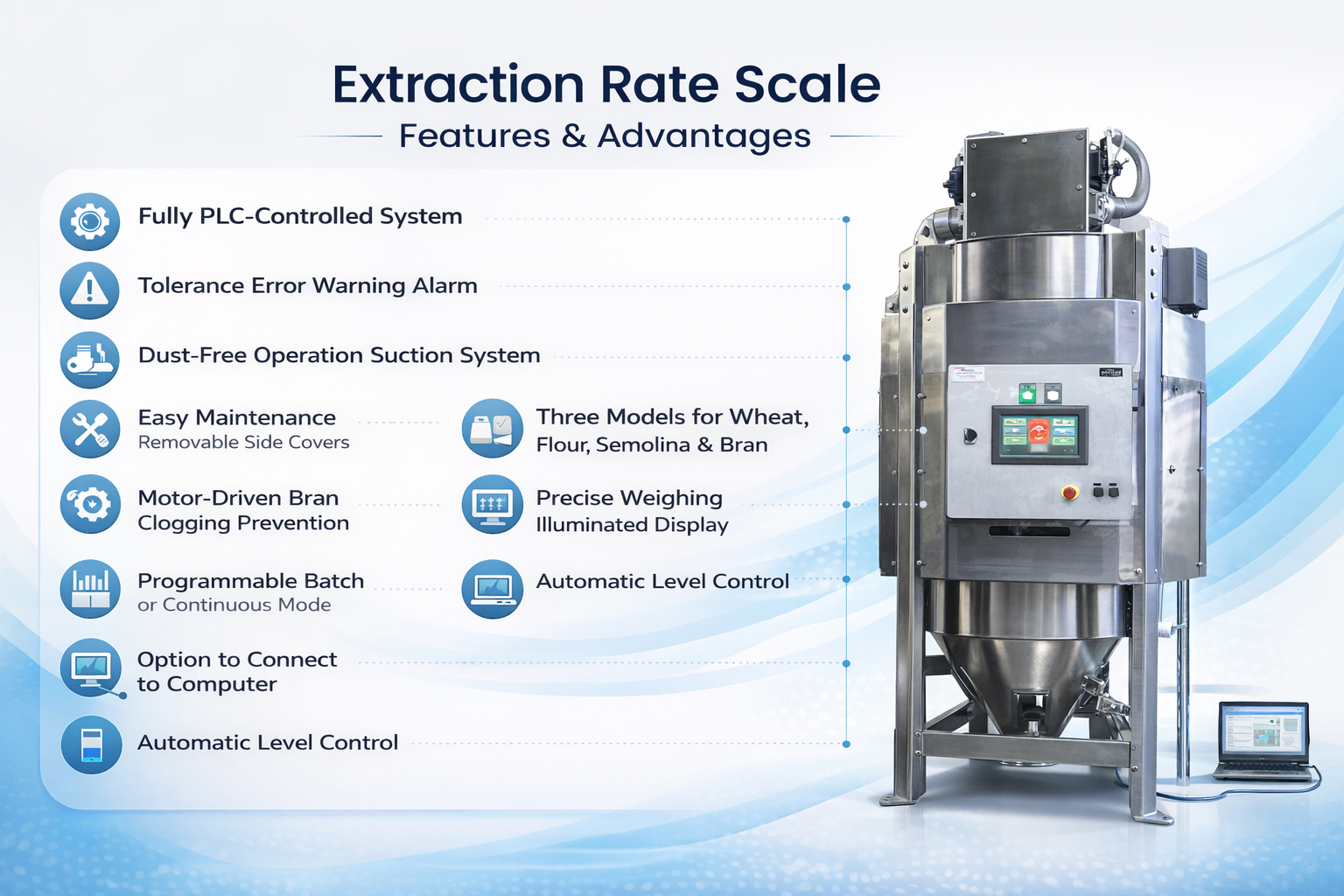

- Fully PLC-controlled system
- Tolerance error warning alarm
- Dust-free operation thanks to the suction system
- Easy maintenance with removable side covers
- Three different models for wheat, flour, semolina, and bran
- Reducer motor-driven stirrer prevents bran clogging
- Precise weighing
- Illuminated display for zeroing and net weight
- Keyboard calibration and setup
- Programmable data output in batch or continuous mode
- Automatic level control
- Option to connect to a computer
- Food industry
- Flour and semolina mills
- Milk powder factories
- Other similar industrial facilities
